Horizontal Malfunction Alarm Coil Insertion Machine For Insert Coil And Wedge

NINGBO NIDE MECHANICAL EQUIPMENT CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Horizontal Malfunction Alarm Coil Insertion Machine For Insert Coil And Wedge

  • 1
  • 2

Place of Origin : China

Brand Name : Nide

Certification : None

Model Number : QW1-250-300E

MOQ : 1 set

Price : Negotiable

Packaging Details : Wooden case suitable for sea transportation

Delivery Time : 35 working days

Payment Terms : T/T, L/C

Supply Ability : 600 sets per year

controlled : PLC.

shape : horizontal frame

type : middle

system : AC servo motor driving

Contact Now

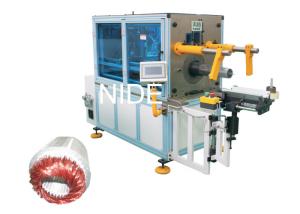

Horizontal Malfunction Alarm Coil Insertion Machine For Insert Coil And Wedge

Quick Detail:

1. This coil inserter machine is used to insert coil and wedge.
2. The coil inserting machine is controlled by PLC.
3. This stator coil inserting machine is designed with a horizontal frame.
4. easy operation and convenient tooling change.
5. The inserting machine can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.

Description:

It is used for winding and wedge automatically inserting. Horizontal Winding Inserting Machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, Horizontal Winding Inserting Machine has the function of status display, malfunction alarm, various parameters setting etc. It has the characteristic of widely application, high automation, easy operation and convenient tooling change.


Technical parameter:

Stator I.D

110~210mm

Stator O.D

175~300mm

Stator stack length

≤250mm

Slot number range

16~48 slots

Appropriate wire

0.2~1.2mm

Input

380V/50Hz

Power source

380/50/60Hz4Kw

Dimension

1000*2000*2000mm

Weight

≈ 1850kg

Competitive advantages:

Easy operation and convenient tooling change. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.


Product Tags:

automatic coiling machine



coil insertion machine


China Horizontal Malfunction Alarm Coil Insertion Machine For Insert Coil And Wedge wholesale
